1.工作原理
物料由料斗经螺旋输送器进入粉碎室，被高速旋转的刀片剪切粉碎，粉体越过导向圈进入分级室，因分级轮是旋转的，流入叶道内的粉体同时受到空气动力和离心力的作用。粉体中大于临界直径（分级粒径）的颗粒因质量大，被甩回粉碎室继续粉碎，小于临界直径的颗粒通过负压风运的方法经出料管进入旋风分离器、袋式除尘器，排出物料达到产品的要求。
2.主要用途
本机由主机、辅机、电控箱三个部分组成，具有风选式、无筛、无网、出料粒度大小均匀等多种性能，生产过程连续进行，能处理如化学制品、食品、药品、药剂、化妆品、塑料、染料、树脂、颜料、谷物等物料的粉碎。
3.要优特点
1、设计紧凑，结构合理，机内装有内分级机构，使粉碎、分级一次完成，以减少过粉碎而造成的能耗损失
2、系统中装有引风机，在粉碎作业时可将机内产生的热量连续不断的排出，因而适应热敏性物料的粉碎
3、适应性强，具有较窄的粒度分布，产品粒度均匀，细度可达10-5um
4、在不停机情况下，调节分级机转速或调节风量，可得到所需粒度、分布均匀的制品
5、主机上盖用气弹簧打开，机身采用哈呋结构，使机身可向两侧打开，因此清洗维护内部部件完全没有障碍
6、主要粉碎部件采用高级合金工具钢制造，可大大延长磨损件的使用寿命，延长更换周期
7、轴承系统采用国外进口高速精密轴承，转子整体做动平衡，使整机运转平稳，振动小，噪音低
8、管道连接采用快拆式结构，能快速、方便地拆装、清洗
9、配有旋风分离器和除尘器，生产过程中无粉尘飞扬；粉尘捕集袋能有效截留气流中的微粉，使废气排放符合清洁环保要求
10、粉尘捕集袋截留的细粉能有效回收，降低了物料的损耗率

【working principle】
Material from the hopper through the screw conveyor into the crushing chamber, the high-speed rotating blade smash, the powder over the guide ring into the classification room, because the grading wheel is rotating, the powder flowing into the leaf path at the same time by the aerodynamic and centrifugal force . Particles larger than the critical diameter (classification particle size) in the powder are thrown back into the crushing chamber and continue to be pulverized because of their large mass. Particles smaller than the critical diameter are transported through the negative pressure and enter the cyclone separator and the bag filter through the discharge pipe. , discharge the material to meet the product's requirements.
【The main purpose】

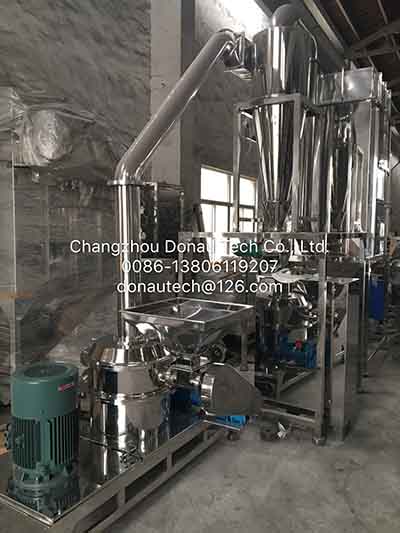

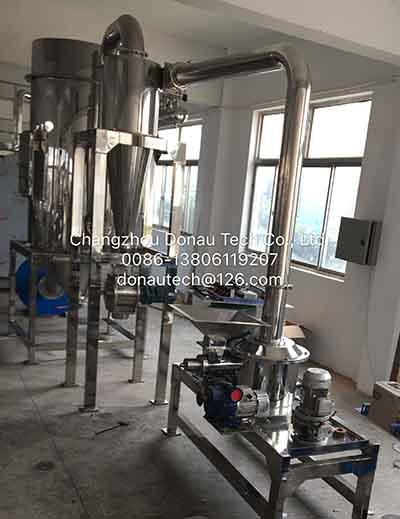

This machine is composed of three parts: host machine, auxiliary machine, and electric control box. It has a variety of properties such as air separation, no screen, no net, uniform size of discharge material, etc. The production process is continuous and can deal with chemicals, food, etc. The shredding of pharmaceuticals, pharmaceuticals, cosmetics, plastics, dyes, resins, pigments, cereals and other materials.
【Main Features】
1. The design is compact and the structure is reasonable. The internal grading mechanism is installed inside the machine to make the smashing and grading completed once, so as to reduce the energy loss caused by excessive smashing.
2. Induced draft fan is installed in the system, and the heat generated in the machine can be continuously discharged during the crushing operation, thus adapting to the crushing of heat-sensitive materials.
3, strong adaptability, with a narrow particle size distribution, product size uniformity, fineness up to 10-5um
4. Under the condition of not stopping the machine, adjusting the speed of the classifier or adjusting the air volume can obtain the desired particle size and uniform distribution products.
5. The upper cover of the main unit is opened with a gas spring. The fuselage adopts a Haval structure so that the main body can be opened to both sides. Therefore, there is no obstacle to cleaning and maintaining the internal components.
6. The main crushing parts are made of high-grade alloy tool steel, which can greatly extend the service life of wear parts and prolong the replacement cycle.
7. The bearing system adopts imported high-speed precision bearings, the whole rotor makes dynamic balance, so that the whole machine runs smoothly, with low vibration and low noise.
8. The pipe connection adopts quick release structure, which can disassemble and clean quickly and easily.
9, equipped with cyclone separator and dust collector, no dust flying in the production process; dust trap bag can effectively trap the micro-powder in the air flow, so that exhaust emissions meet the requirements of clean and environmental protection
10. The fine powder trapped by dust traps can be effectively recovered, reducing the material loss rate
