1. 概述：

不锈钢对辊式破碎机主要由辊轮、辊轮支撑轴承、压紧和调节装置以及驱动装置等部分组成。两辊轮之间装有楔形或垫片调节装置，楔形装置的顶端装有调整螺栓，当调整螺栓将楔块向上拉起时，楔块将活动辊轮顶离固定轮，具有噪音低、粉尘少、性能可靠、维修方便等特点。

2. 原理：

对辊式破碎机将破碎物料经给料口落入两辊子之间，进行挤压破碎，成品物料自然落下。遇有过硬或不可破碎物时，对辊式破碎机的辊子可凭液压缸或弹簧的作用自动退让，使辊子间隙增大，过硬或不可破碎物落下，从而保护机器不受损坏。相向转动的两辊子有一定的间隙，改变间隙，即可控制产品******排料粒度。双辊破碎机是利用一对相向转动的圆辊，四辊破碎机则是利用两对相向转动的圆辊进行破碎作业。

3、应用范围

适用于需要将烧结好的大颗粒状物料破碎成小颗粒或粉末，多用于冶金行业烧结后的物料进行多级破碎达到粉末状的工况，如碳化硅、碳化钨等，进料粒度：25-100mm，成品粒度0.1-10mm 。

1. Description

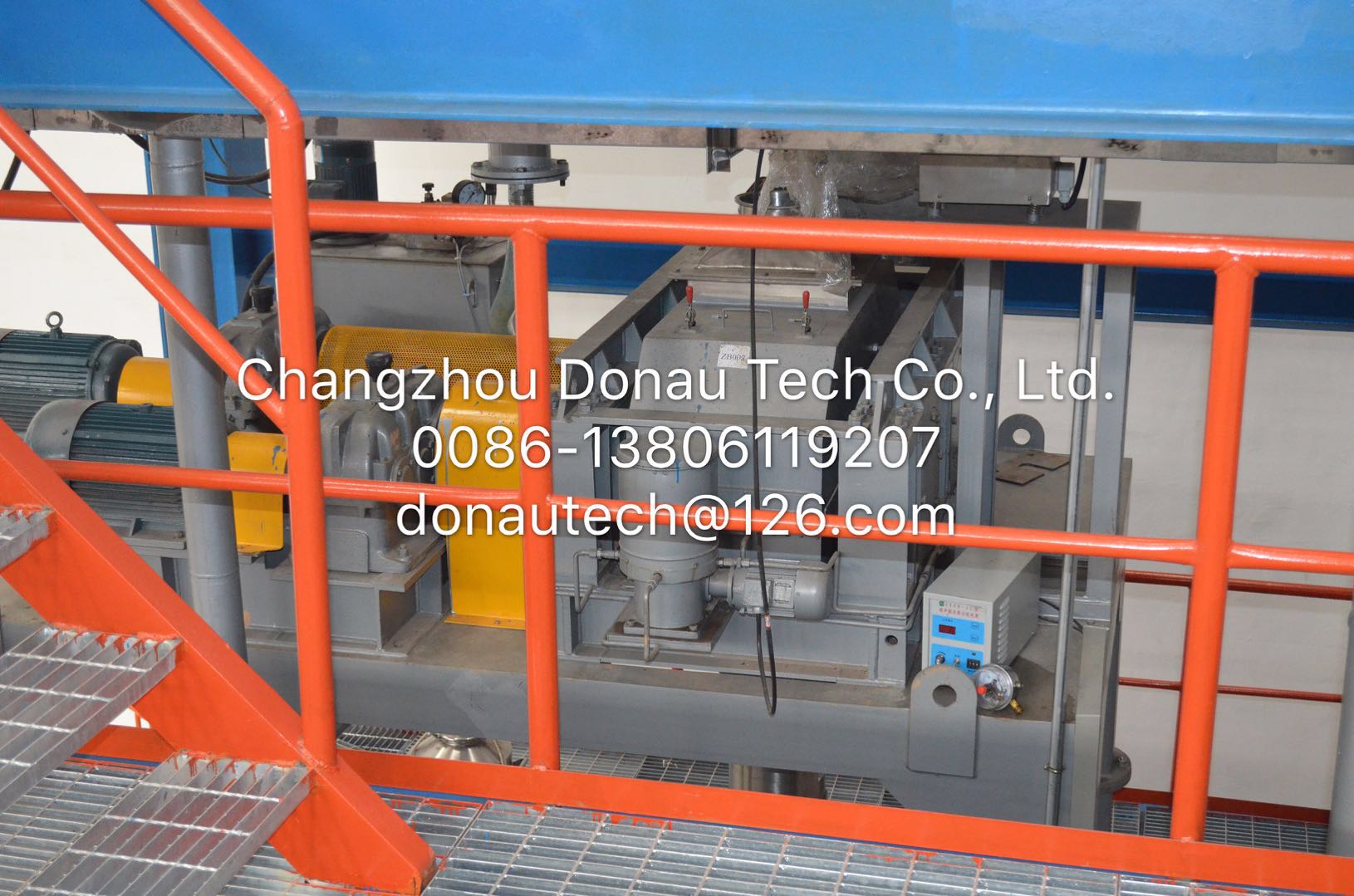

Stainless steel roller crusher Consists of the roller, roller bearings, compression and adjustment devices and drives and other components. A wedge or shim adjustment device is mounted between the two rollers, the top of the wedge device is equipped with adjusting bolts, and when the adjusting bolt pulls the wedges upwards, the wedges lift the movable roller away from the fixed wheels with low noise and Less dust, reliable performance, easy maintenance and so on.

2. Principle

Raw material feed into the gap of the two rollers, for crushing, the finished product come out from the bottom of the roller freely . Case of hard or unbreakable material , the roller crusher roller hydraulic cylinders or springs can automatically retreat, so that the roller gap increases, too hard or unbreakable objects fall, thus protecting the machine from damage. Opposing rotation of the two rollers have a certain gap, changing the gap, you can control the maximum particle size of the product. Double-roll crusher is use a pair of opposite rotation roller, four-roll crusher is use two pairs of opposite rotation roller for crushing operation.

3.Application Scope

It is suitable for crushing large agglomerated material into small particles or powder. Used for multi-level crushing of the sintered material in the metallurgical industry to reach the powdery condition , Such as silicon carbide, tungsten carbide , etc … , Feed particle size: 25-100mm, finished particle size: 0.1-10mm.
