CHANGZHOU DONAU TECH CO., LTD.
节能干燥设备--（真空）耙式干燥机 （通过欧盟CE & PED认证）
Energy Saving Drying Equipment --Vacuum Rake Dryer (CE&PED Approved)
1. 应用( Application )：
1.1医药、食品、化工等行业进行以下物料干燥：
For drying following material in medical , food , chemical industries :
1.2适用于浆状、膏糊状、粉状物料。
Suit for the material like slurry , cake , powder .
1.3要求低湿干燥的热敏性物料。
Suit for thermosensitive materials which need low temperature drying .
1.4易氧化、易爆、强刺激、剧毒物料。
Suit for easy oxide ,explosion , high irritation ,high toxic material .
1.5要求回收有机溶剂的物料。
Suit for the drying process need to recycling organic solvents .
2.特点( Features )：
2.1本机夹层与搅拌轴同时加热，传热面大，热效率高。
Jacket and shaft and rake with heating function , with bigger heating area , high heat efficiency .
2.2本机搅拌轴可正反转，使物料在筒内形成连续循环状态，进一步提高了物料受热的均匀度。
Dryer shaft can turning in FWD and REV direction. Material in the dryer in a continuous circling mode to improve the heating evenness.
2.3本机搅拌轴采用螺旋分布，从而可顺利进行浆状、膏状、糊状物料干燥。
Dryer rake well distributed on the shaft according to a spiral .
3.技术参数( Technical Parameter )：
项目ITEM |
机 型 Model |
|||||||||
名称NAME |
单位UNIT |
ZPG-500 |
ZPG-750 |
ZPG-1000 |
ZPG-1500 |
ZPG-2000 |
ZPG-3000 |
ZPG-5000 |
ZPG-8000 |
ZPG-10000 |
工作容积 |
L |
300 |
450 |
600 |
900 |
1200 |
1800 |
2400 |
4800 |
6000 |
加热面积 |
m2 |
6 |
7.6 |
9.3 |
12.3 |
14.6 |
19.3 |
25 |
28 |
33 |
搅拌转速 |
rpm |
6-30无级调速 |
||||||||
功率 |
kw |
4-11 |
5.5-18.5 |
5.5-22 |
7.5-30 |
11-37.5 |
15-45 |
18.5-55 |
22-55 |
45-110 |
夹层设计压力 |
MPa |
≤0.3 |
||||||||
筒内压力 |
MPa |
-0.1-0.15 |
||||||||

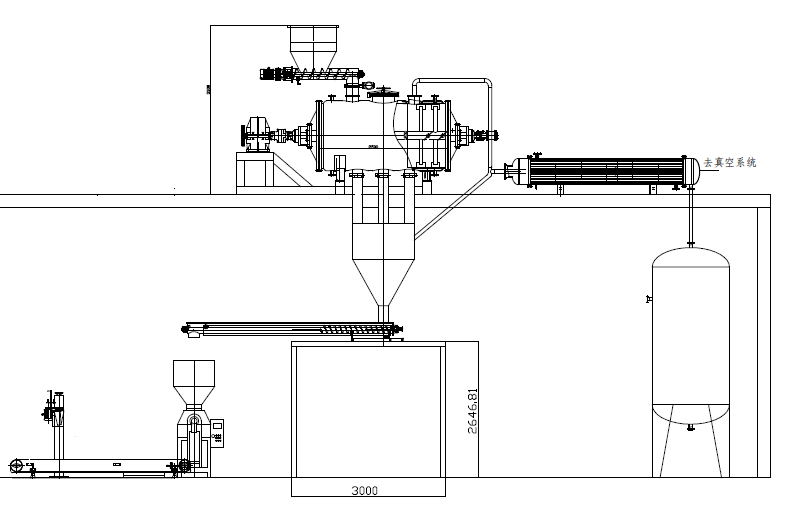

4.工艺流程( Technical Flow)：
5、典型物料（ Typical Material ）：
唑酸钠、颜料、生物饲料、磷酸铁锂、橡胶助剂、 无水硫化钠、对苯二甲酸、元明粉、2－肼基－4－甲基苯并咪唑、泥浆状 高糊状 100目以下物料 各种颜料、泥头状物料 滤并 离心机滤并纯碱洗涤剂、 碱石淀粉、染料 颜料、粘土灰等 粘土等 水泥等 100目以下物料 溶液 合成纤维、结晶 真空液、乳浊液 甘薯片、矿砂等 悬浮液
Sodium azodicarboxylate, pigment, biological feed, lithium iron phosphate, rubber chemicals, anhydrous sodium sulfide, terephthalic acid, sodium sulfate, 2-hydrazino-4-methylbenzimidazole, The following materials of various pigments, muddy material filter and centrifuge filter and soda ash detergent, alkali stone starch, dye pigments, such as clay and clay clay 100 mesh following the material solution Synthetic fibers, crystal vacuum fluid, emulsion Sweet potato chips, ore and other suspensions
