产品概述
粉体物料与结合剂在圆筒形容器中由底部混合桨充分混合成湿润软材，然后由侧置的高速粉碎桨切割成均匀的湿颗粒。
设备特点
本机采用卧式圆筒构造，结构合理。
充气密封驱动轴，清洗时可切换成水。
流态化造粒，成粒近似球形，流动性好。
较传统工艺减少粘合剂，干燥时间缩短。
每批次干混2分钟，造粒1-4分钟，功效比传统工艺提高4-5倍。
在同一封闭容器内完成，干混——湿混——制粒，工艺缩减，符合GMP规范。
整个操作具有严格的安全保护措施。

可制成夹套加热型，可定制抽真空型的高速湿法混合制粒设备。

product description

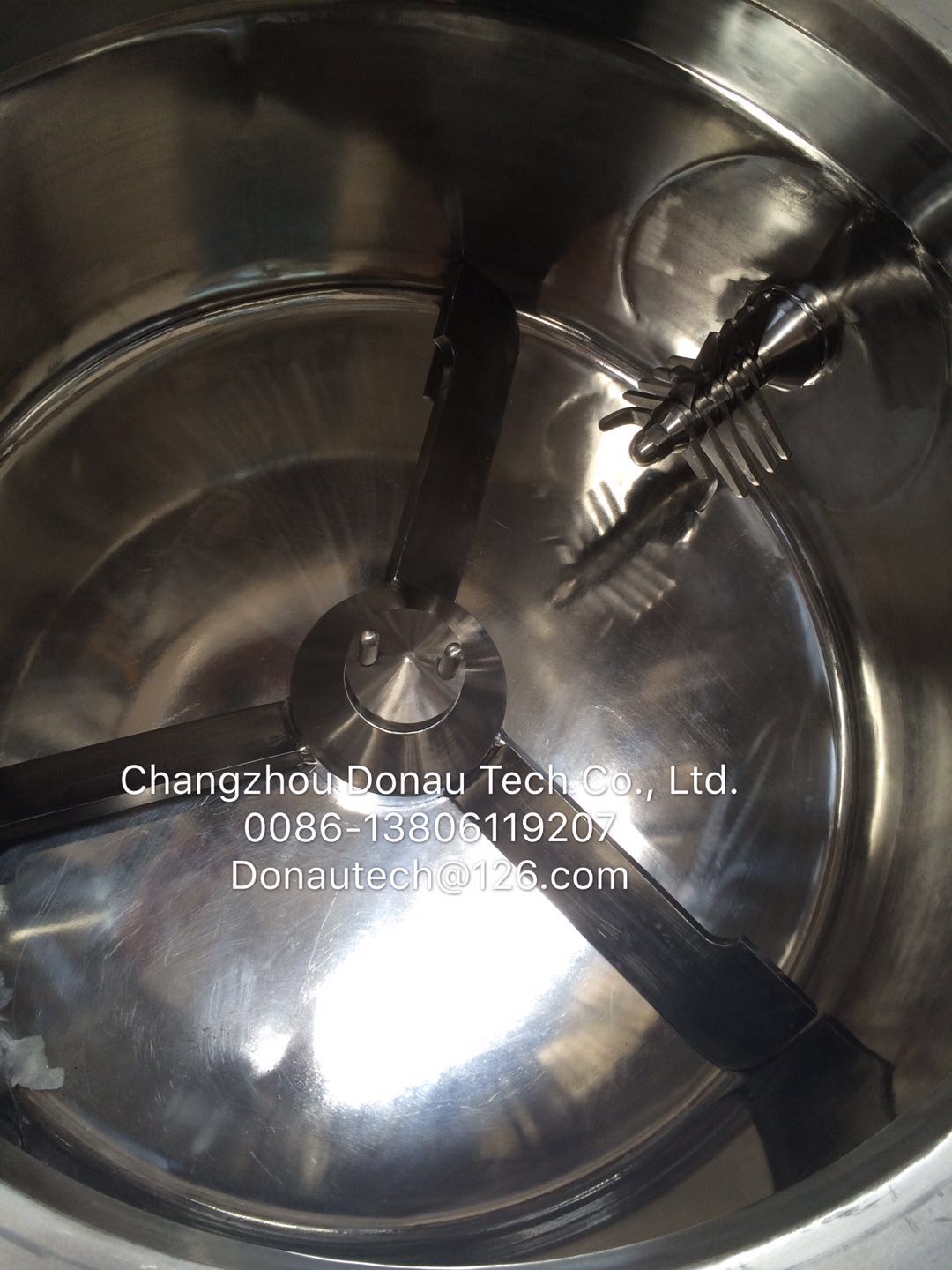

The powder material and the binding agent are thoroughly mixed into a wet soft material in the cylindrical container by the bottom mixing paddle, and then cut into uniform wet particles by the high speed pulverizing paddles disposed on the side.
Features
The machine adopts a horizontal cylinder structure and has a reasonable structure.
Inflatable sealed drive shaft, switchable to water when cleaning.
Fluidized granulation, granulation approximate spherical, good fluidity.
Less adhesive than traditional process, drying time is shortened.
Dry mixing for 2 minutes per batch, granulation for 1-4 minutes, the effectiveness of 4-5 times than the traditional process.
Completed in the same closed container, dry mixing - wet mixing - granulation, process reduction, in line with GMP specifications.
The entire operation has strict safety protection measures.

Can be made into a jacket heating type, can be customized vacuum type high speed wet mixing granulation equipment.
