粗碎机(可做欧盟CE & PED认证)

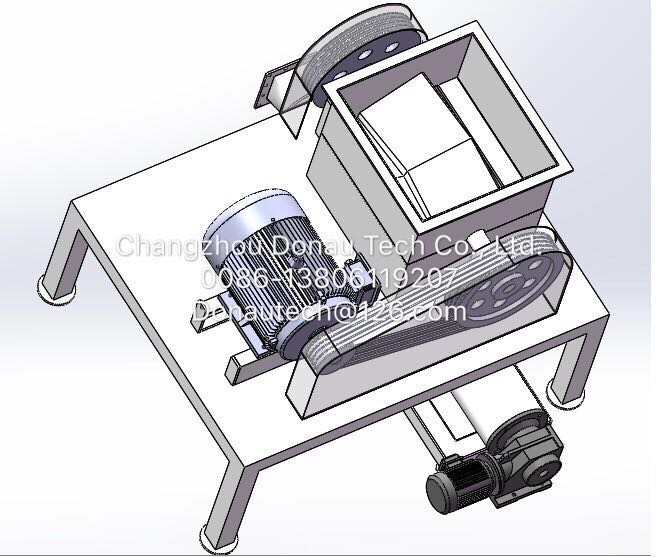

Rough Crusher & Mill ( Can be CE&PED certificated )

Fluidized bed coating system



1、主要用途:
  本粉碎机适用于制药、化工、食品等行业,是微粉碎加工前道工序的配套设备,它不受物料粘度、硬度、软度及纤维等限制,对任何物料都能起到较好的粉碎作用。

2、工作原理:
  本粉碎机为卧式粉碎结构,物料由粉碎机料斗进入粉碎室,利用旋转刀与固定刀冲击、剪切而获得粉碎,经旋转离心力的作用,物料自动流向粉碎机出口处。该机按"GMP"标准设计,本粉碎机全部采用不锈钢材料制造,结构简单、清洗方便、噪音低、目前是粗粉碎中最理想的设备。

1.Main Application:
The crusher is suitable for pharmaceutical, chemical, food and other industries. It is an accessory equipment for the micro-milling process. It is not limited by the viscosity, hardness, softness, and fibers of the material and can play a good role in crushing any material. effect.

2.working principle:

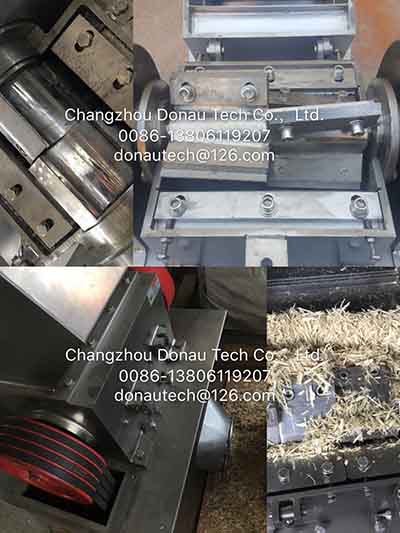

The pulverizer is a horizontal pulverization structure, and the material enters the pulverization chamber through a hopper of the pulverizer. The pulverization machine uses a rotary cutter and a stationary cutter to impact and shear to obtain the pulverization. The material is automatically discharged to the outlet of the pulverizer by the effect of the rotary centrifugal force. The machine is designed according to the "GMP" standard. The mill is made of stainless steel. It is simple in structure, easy to clean and low in noise. It is currently the ideal equipment for coarse crushing.



4.工艺流程图schematic diagram

P&ID of paddle dryer

5.技术参数( Technical Parameter ):

型号
生产
能力
进料
粒度
粉碎
细度
主轴
转速
电机
功率
外形尺寸
(长×宽×高)
重量
CSJ-200型
80-300
kg/h

≤100
mm

0.5-20
mm

960
r/min
3KW
900×600×1440
(mm)
200
kg
CSJ-300型
100-800
kg/h
4KW
900×700×1440
(mm)
300
kg
CSJ-400型
200-1000
kg/h
5.5KW
900×800×1440
(mm)
380
kg
CSJ-600型
500-1500
kg/h
11KW
1000×900×1440
(mm)
500
kg
