不锈钢斗式提升机/不锈钢提升机(可做欧盟CE 认证)

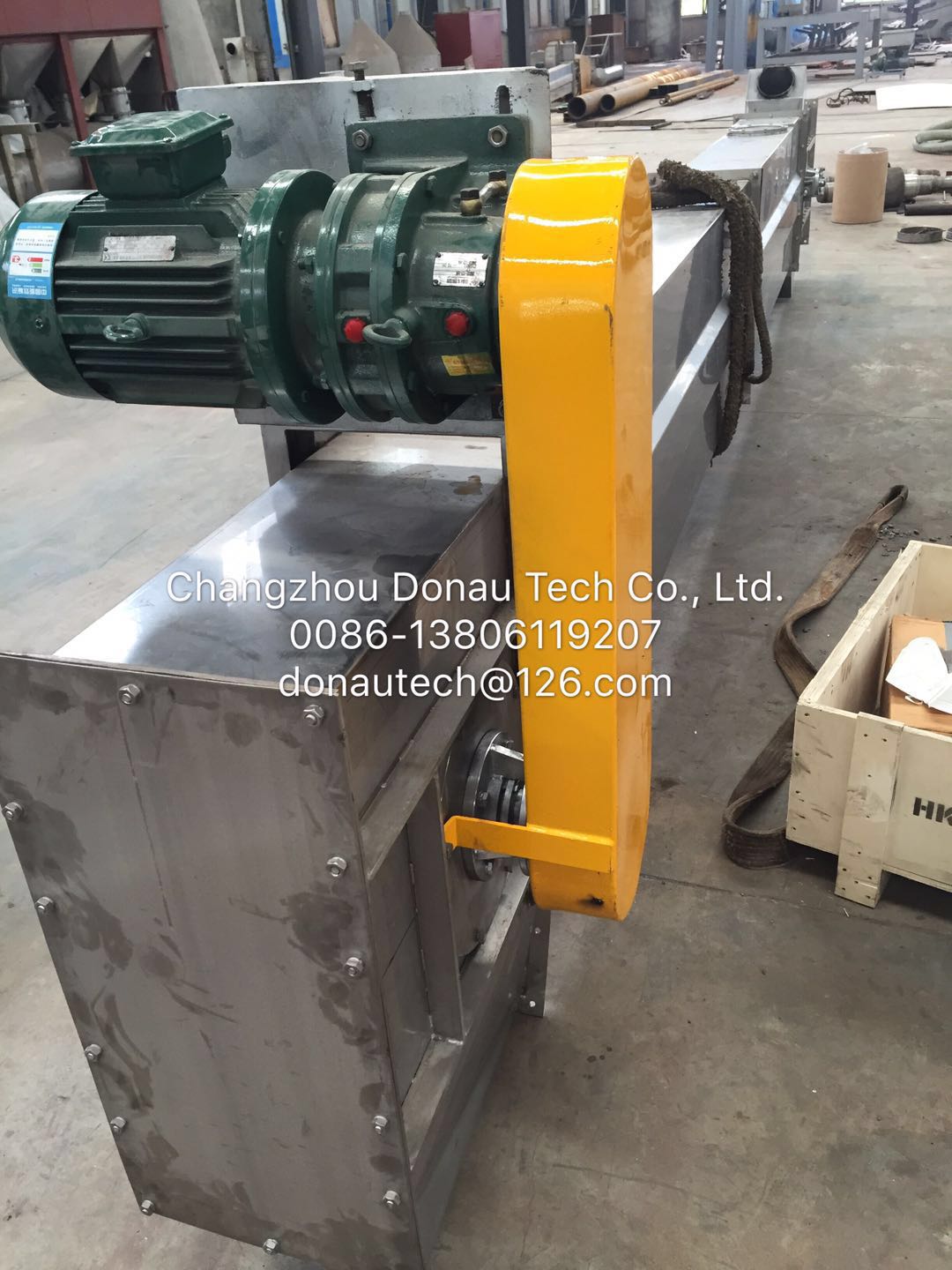

Stainless Steel Bucket Elevator / Stainless Steel Elevator( Can be CE certificated )
1.概述 |
1.Descriptions Stainless steel bucket machines are commonly used for the transport of powdered materials. The whole machine consists of buckets, drive belts or chains, housings, support bearings, and drive motors,etc.... |
4.技术参数( Technical Parameter ):

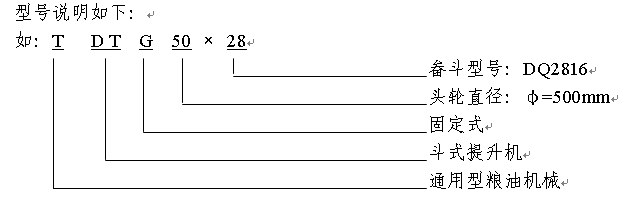

项目 型号 Model |
头轮直径 Roller Diameter |
提升量 Capacity |
线速度 Speed |
畚斗距离 Distance between buckets |
提升高度 Hight |
电机功率 Power |
TDTG20×11 |
200 |
2~8 |
2~3.5 |
150~220 |
≤10 |
1.1~3 |
TDTG26×11 |
260 |
3~9 |
2~3.5 |
150~220 |
≤15 |
1.1~3 |
TDTG32×11 |
320 |
5~10 |
2~3.5 |
125~180 |
≤30 |
1.1~3 |
TDTG40×13 |
400 |
10~20 |
2~3.5 |
150~220 |
≤35 |
2.2~5.5 |
TDTG50×18 |
500 |
10~20 |
2~3.5 |
170~220 |
≤40 |
3~7.5 |
TDTG60×23 |
600 |
40~60 |
2~3.5 |
200~250 |
≤45 |
4~13 |
TDTG80×48 |
800 |
150~200 |
2~3.5 |
280~330 |
≤50 |
11~45 |
输送量的计算:
Q=KQ实
式中:Q---造型输送量(T/H)
Q实---实际输送量(T/H)
K---为防止密集进料或堵塞而考虑的不均匀系数, K=1.2~1.6
并且:Q=3.6×i×γ×φ×υ/a
式中:i---畚斗容积(L)
a---畚斗间距(m)
γ---物料容重(T/m3)
φ---装满系数
υ---线 速(m/s)
To be confirmed by the detail requirements .
Note: customized equipment is acceptable for us .
CE & UL requirement is acceptable for us .
